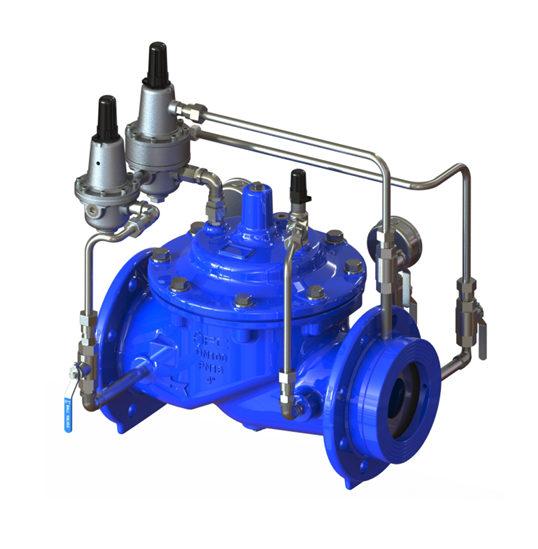

A204 Pressure Reducing with Flow Control Valve
Features:
·Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the main line.
• Nylon-reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into many different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For pressure and flow control in water applications.
Technical Data:
Size Range: DN50~DN1000mm
Pressure Ratings: 1.0Mpa; 1.6Mpa;2.5Mpa
Working Temperature:-10C- 80C
Suitable Media: Water
End connection: PN 10/ PN 16/ PN 25
Consult Factory for other applications
