Alpine Flange Adaptor Small – Mild Steel (M2201)

SKSA - Sewage Combination Air Release Valve Anti-shock type

Spec Sheet: AFC-M2201 SMALL OD MILD STEEL FLANGE ADAPTORS-DN50 TO DN400-FA-1

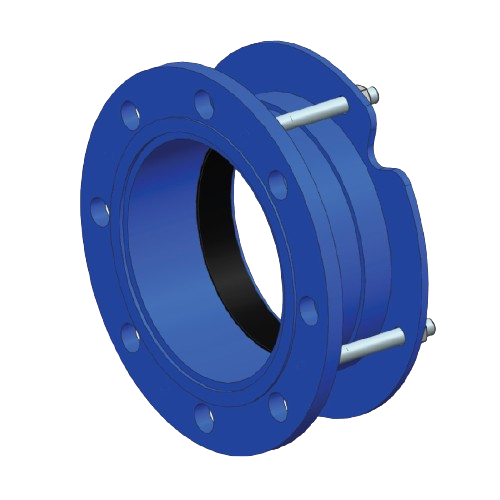

The Model 2201 is a small-range fabricated flange adaptor, for all MS, DI, and AC pipes, suitable for use with water and neutral liquids (sewage), to a maximum temperature of +50°C. Size from OD63.0 to OD453.1 mm. Other sizes and standards are available upon request.

Description

Alpine Flange Adaptor Small – Mild Steel (M2201)

TECHNICAL SPECIFICATION

Model	: M2201
Size	: OD 63.0- 453.1 mm
Medium	: Water & Wastewater
Pressure
Working Pressure	: 10, 16, or 25 bar
Testing Pressure	: 1.5 X PN
Temperature	: Max. 50 deg
Flange Drilling	: Accordance to EN1092-1, PN10, 16 or 25
Material
Adaptor Flange	: Mild steel to BS EN10025-2:2004 Grade S235JR
End Ring	: Mild steel to BS EN10025-2:2004 Grade S275JR
Gasket	: EPDM
Stud Bolt	: Hot dipped galvanized Mild Steel to BS EN ISO898-1:2009 Grade 8.8: Hot dipped galvanized steel to BS4190:2001 Grade 8.8: Hot dipped galvanized steel
Nut
Washer
Coating	: Min 250µ epoxy coating RAL 5017 blue
Option Tie lug Tie Rod	: Mild steel to BS EN10025-2:2004 Grade S275JR: Hot dipped galvanized steel to BS EN ISO898- 1:2009 Grade 8.8 : Hot Dipped Galvanized internally and externally
