Description

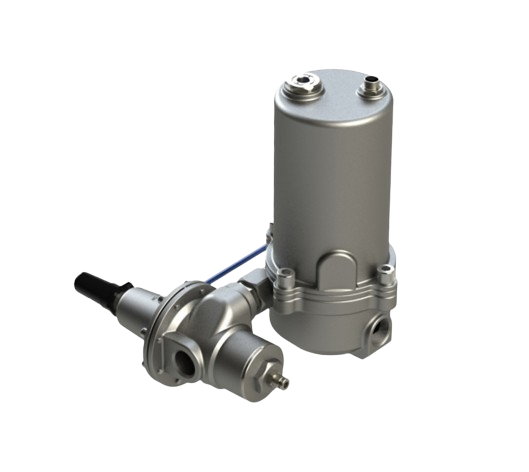

MHPG – Hydraulic Power Generator
Features:
1. Material of Construction:
– Body: Stainless Steel (S/S) 304
– Rotor Shaft: Stainless Steel (S/S) 304
2. Power Generation:
– The Hydraulic Power Generator utilizes the hydraulic fluid’s flow rate and differential pressure (delta P) to generate power.
– The movement of the fluid, such as water, pushes a series of blades mounted on a rotor shaft.
– The force of the fluid on the blades rotates the rotor shaft of the generator, converting the mechanical (kinetic) energy into electrical energy.

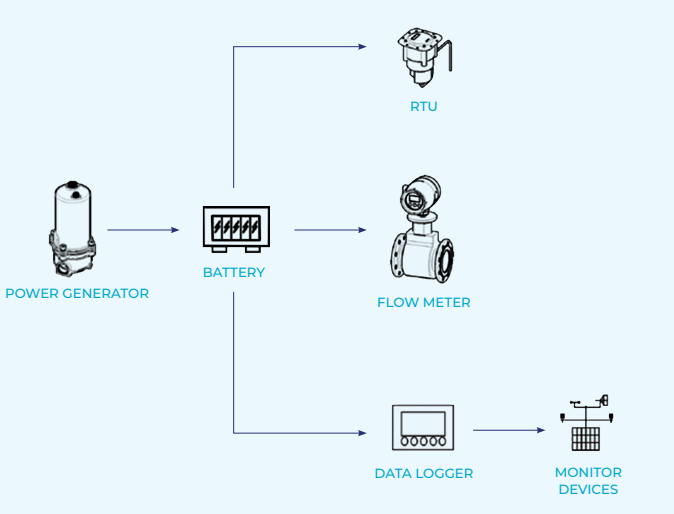

– This electrical energy can be utilized to power various devices and systems.
– Adjustable output voltage 0.5v – 30v
3. Ceramic Bearings:
– Equipped with ceramic bearings that provide exceptional durability and a long operational life span.
– Ceramic bearings offer high strength, low friction, and superior resistance to wear and corrosion.
– Including ceramic bearings ensures trouble-free performance and reduces the need for frequent maintenance or replacements.
4. Turbine Speed Control:
– The turbine speed is controlled using a differential control pilot.
– The differential control pilot adjusts the flow rate and pressure differentials within the hydraulic system, regulating the turbine speed effectively and thereby controlling the current
– This control mechanism enables precise control over the power generation process, optimizing efficiency and performance.
Power Output and Differential Pressure
• 0.1 bar: 4-6 mA
• 0.2 bar: 10-12 mA
• 0.3 bar: 30-40 mA
• 0.4 bar: 60-70 mA
• 0.5 bar: 85-95 mA
• 0.6 bar: 110-140 mA
• 0.7 bar: 150-160 mA
• 0.8 bar: 170-180 mA
• 0.9 bar: 180-190 mA
• 1.0 bar: 190-200 mA
• 1.2 bar: 190-210 mA
• 1.3 bar: 190-210 mA
