Description

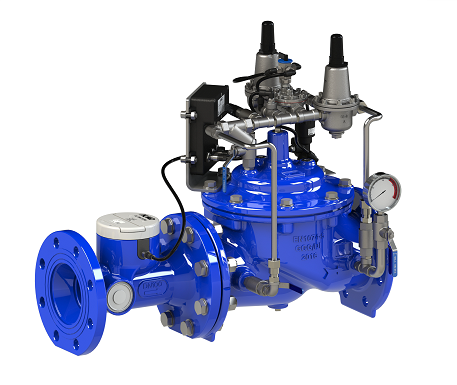

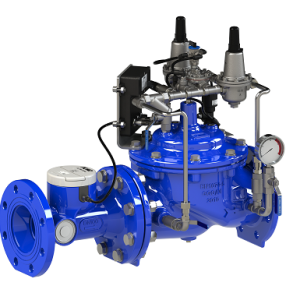

P26U Pressure Management Valve (Flow Rate Based)
Features:
• 10 years life lithium battery.
• A black control box and solenoid valve are connected to the control tube system.
• Controller box can be set either by timing or flow rate thru the remote controller.
• IP68 for water resistance.
• Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
• Both P26M & P26U types have a control box and solenoid valve on the main valve.
• P26U- has 2 flow rate setting values (lower and higher level), to switch between the 2 different setting pressure.
• P26U- same main valve as P26M. The purchaser can combine either an ultrasonic or magnetic meter which can provide an RS485 signal connected to the control box
• Single remote controller can be fitted for multiple valve setting use, no matter number of valves
Technical Data:
Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-100C- 800C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
