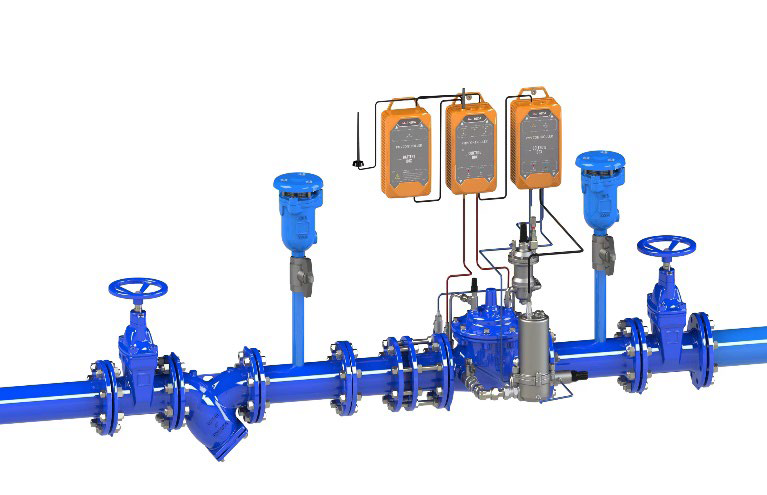

Pressure Management Valve (Type III Controller)
Pressure Management Valve (Type III Controller)
The intelligent valve controller can realize the pressure management of the pipe network with a hydraulic control valve and a special pilot. The advantages of pressure management: reduce water leakage, prolonging the service life of the pipeline, and reduce the investment and maintenance cost of the pipe network. The product can communicate with cloud platforms in the world through 4G, 3G, and GPRS, and support cloud platforms and mobile apps to configure and query devices.
– Pressure modulations based on the peak factor and non-peak factors (Pressure v/s. Time)
– Flow rate modulations based on the demand.
– Alert for a pipe burst/leak or Needs Fire Fighting
– On-Off Control
– Level Control
– Pressure Sustaining
FEATURES
– To Minimise Leakages and Reduce the Frequency of Pipe Bursts
– Multi Point Pressure and Flow Control.
– Precise Modulation of The Pressure with Most Suitable Settings as Per the Demand Factor
– Battery Operated – Maximum 5 Years
– Special Designed Pilot for Precise Control.
– IP68 – Water Resistance
– Complies With BS EN 1074-5, ISO 5208, BS EN12266-1, BS EN558-1
– Data Transmission Through GPRS, 3G, 4G
– With Cloud Control, the App is user-friendly
– Technical Data:
– Size Range: DN 50 to DN 800 mm
– Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa (PN 10, 16, 25)
– Working Temperature: -10 Deg. C- 80 Deg. C.
– Media: Potable Water
– End connection: PN 10 / PN 16 / PN 25
