Automatic Control Valves

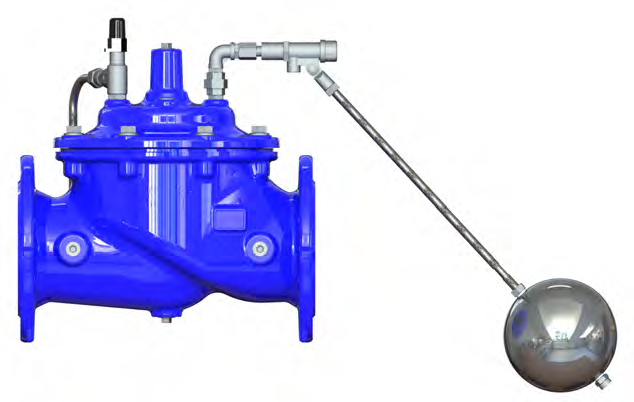

A100 Modulating Float Control Valve
Float-operated level control for reservoirs and tanks.
Product Description
The A100 is a hydraulically operated modulating float control valve for reservoir and tank level management. A float pilot senses water level and progressively opens or closes the main valve to maintain a set level. Smooth modulating action prevents water hammer and eliminates the pressure surge associated with simple on/off ball float valves. Suitable for service reservoirs, break pressure tanks and storage facilities.
Specifications
Size rangeDN50–DN300
PressurePN16
MaterialDuctile iron body, rubber-lined diaphragm
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Service reservoirs
- Water towers
- Break pressure tanks
- Storage tanks
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN300
- Pressure
- PN16
- Connection
- Flanged PN16
