Automatic Control Valves

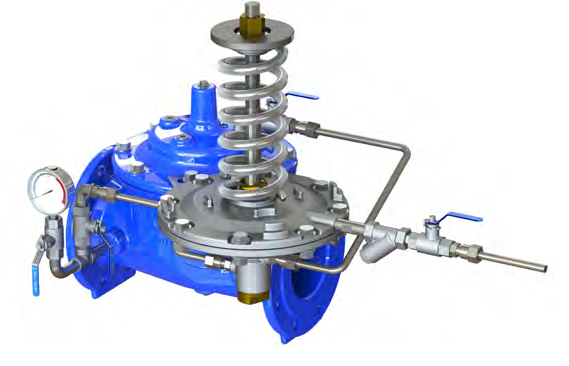

A10A Altitude Control Valve
Altitude control valve for elevated storage tanks.
Product Description
The A10A altitude control valve fills elevated storage tanks and water towers by sensing the hydrostatic pressure at the tank connection. When the tank reaches the high-level set point, the pilot closes the main valve; when the level drops to the low set point, it reopens. Fully hydraulic operation â no electrical power or float mechanism inside the tank is required.
Specifications
Size rangeDN50âDN300
PressurePN16
MaterialDuctile iron body, EPDM diaphragm, stainless pilot
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Water towers
- Elevated storage tanks
- Standpipes
- Rooftop tanks
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50âDN300
- Pressure
- PN16
- Connection
- Flanged PN16
