Automatic Control Valves

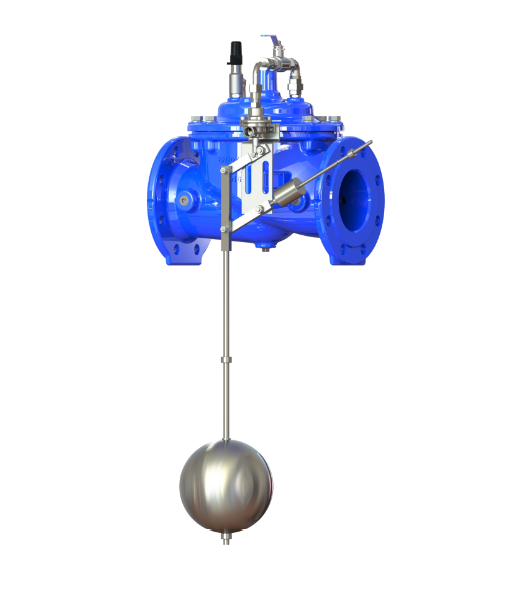

A10B Bi-Level Float Control Valve
Dual-level float control for two-stage reservoir fill.
Product Description
The A10B bi-level float control valve provides two-stage filling: it opens fully at the low-level set point and throttles to a reduced flow rate as the reservoir approaches the high-level set point, preventing overfill surge and pipeline banging at the end of the fill cycle. Suitable for service reservoirs where demand varies widely and single-stage control causes water hammer.
Specifications
Size rangeDN50–DN300
PressurePN16
MaterialDuctile iron body, EPDM diaphragm and seals
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Service reservoirs
- Water towers
- Break-pressure tanks
- Municipal water storage
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN300
- Pressure
- PN16
- Connection
- Flanged PN16
