Automatic Control Valves

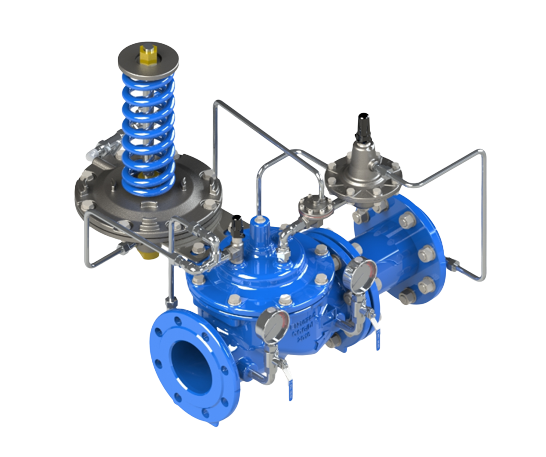

A14A Altitude with Rate of Flow Control Valve
Altitude control with integral flow rate limiting.
Product Description
The A14A combines altitude level control with a rate of flow limiter in a single valve. The altitude pilot closes the valve when the tank is full; the flow pilot limits the fill rate to protect the supply main during peak demand. This combination prevents over-demand from elevated storage while maintaining full altitude control. Used at elevated tank inlets where the supply main has limited spare capacity.
Specifications
Size rangeDN50–DN300
PressurePN16
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Elevated storage tanks
- Limited capacity supply mains
- Water towers
- Rural water supply
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
