Automatic Control Valves

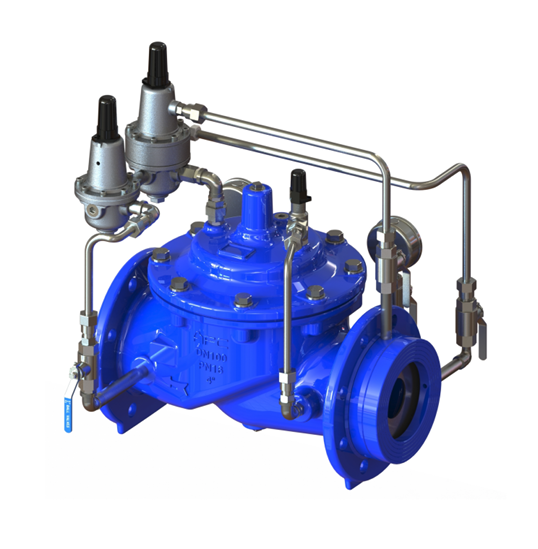

A204 Pressure Reducing Valve with Flow Limiter
Combined pressure reduction and flow limiting.
Product Description
The A204 combines downstream pressure reduction with a flow limiter in a single valve. The dual pilot arrangement simultaneously limits the maximum flow rate and reduces downstream pressure to the set point. When demand exceeds the flow limit, the flow control pilot takes authority regardless of the PRV set point. Used at district supply points where both pressure and demand must be controlled.
Specifications
Size rangeDN50–DN400
PressurePN16
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- District metered areas
- Flow limiting at pressure boundaries
- Water distribution networks
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16
- Connection
- Flanged PN16
