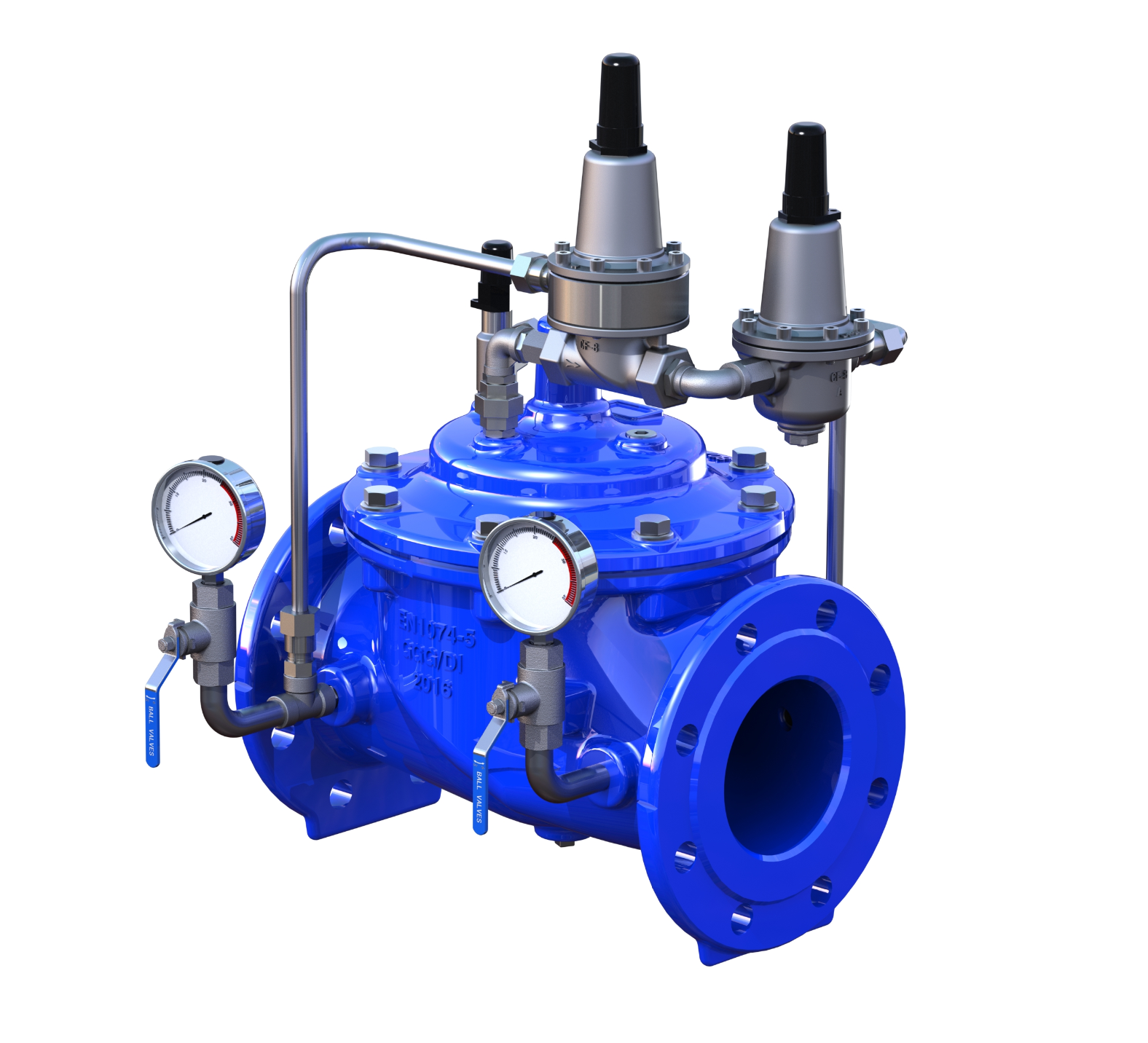

A205 Pressure Sustaining and Reducing Valve
Reduces downstream pressure while sustaining minimum upstream.
Product Description
The A205 combines pressure reduction with pressure sustaining in a single valve. The PRV pilot reduces downstream pressure to the set value while the sustaining pilot ensures upstream pressure does not fall below a minimum threshold. When demand is high and upstream pressure approaches the sustaining set point, the sustaining pilot takes control to protect the upstream supply. Used where one transmission main serves multiple zones with differing supply commitments.
Specifications
Size rangeDN50–DN400
PressurePN16 / PN25
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16/PN25
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Pressure zone boundaries
- Shared transmission mains
- Reservoir inlets
- Bulk supply metering
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16 / PN25
- Connection
- Flanged PN16/PN25
