Automatic Control Valves

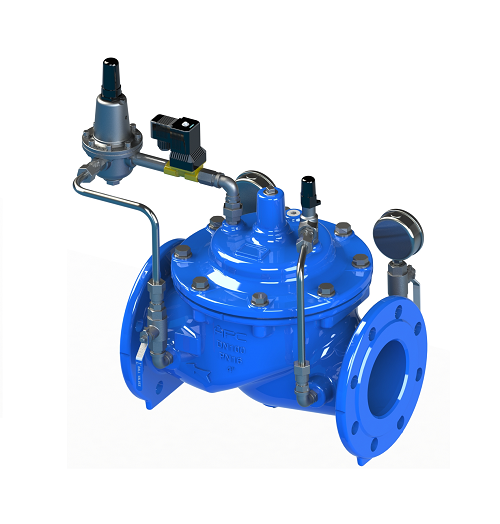

A206 Pressure Reducing Solenoid Control Valve
Remotely controlled PRV with on/off solenoid override.
Product Description
The A206 adds a solenoid pilot to the A200 pressure reducing configuration, enabling remote open/close control. Under normal operation the valve reduces downstream pressure to the pilot set point. On solenoid energisation, the valve is driven fully closed to isolate supply independently of the PRV function. Used in SCADA-controlled networks where emergency isolation or scheduled off-supply is required at pressure-reducing stations.
Specifications
Size rangeDN50–DN400
PressurePN16
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- SCADA-controlled PRV stations
- Emergency isolation
- Water distribution networks
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16
- Connection
- Flanged PN16
