Automatic Control Valves

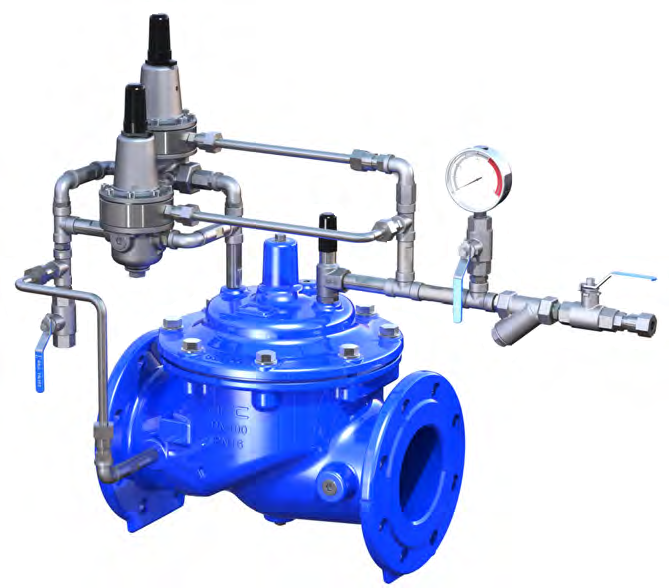

A2A5 Surge Anticipating Control Valve
Surge anticipation valve for pump discharge protection.
Product Description
The A2A5 is a surge anticipating control valve that opens to relieve overpressure before a surge wave reaches its full magnitude. A pressure sensing pilot monitors the pipeline and begins opening the valve as soon as pressure rises above the set point, discharging to atmosphere or a recirculation line to absorb surge energy. This anticipatory action is more effective than a simple relief valve, which only opens after the surge has already peaked.
Specifications
Size rangeDN50–DN400
PressurePN16 / PN25
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16/PN25
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Complex pressure zone boundaries
- Surge-sensitive networks
- Water distribution
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16 / PN25
- Connection
- Flanged PN16/PN25
