Automatic Control Valves

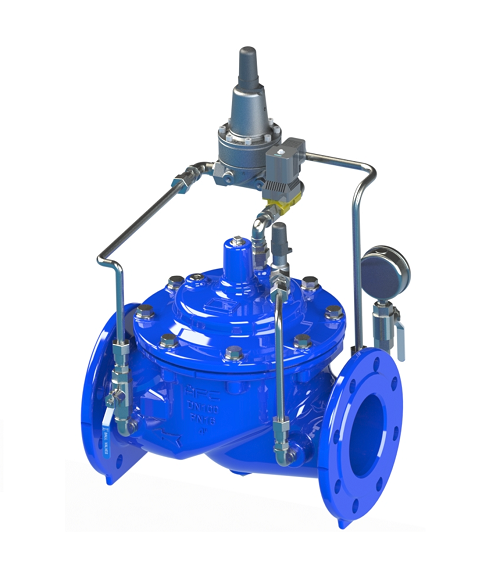

A506 Pressure Sustaining Valve with Solenoid Control
Pressure sustaining and relief with solenoid remote control.
Product Description
The A506 adds a solenoid pilot to the A500 pressure sustaining/relief configuration, allowing the valve to be remotely opened or closed via SCADA regardless of the pressure pilot state. The solenoid override enables the valve to serve as an emergency dump valve or to be closed remotely to isolate the supply. Used at pump stations and reservoir outlets where remote emergency control is required.
Specifications
Size rangeDN50–DN400
PressurePN16 / PN25
MaterialDuctile iron body, EPDM diaphragm, stainless pilots
ConnectionFlanged PN16/PN25
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- SCADA-controlled sustaining stations
- Emergency dump duty
- Pump station outlets
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
