Automatic Control Valves

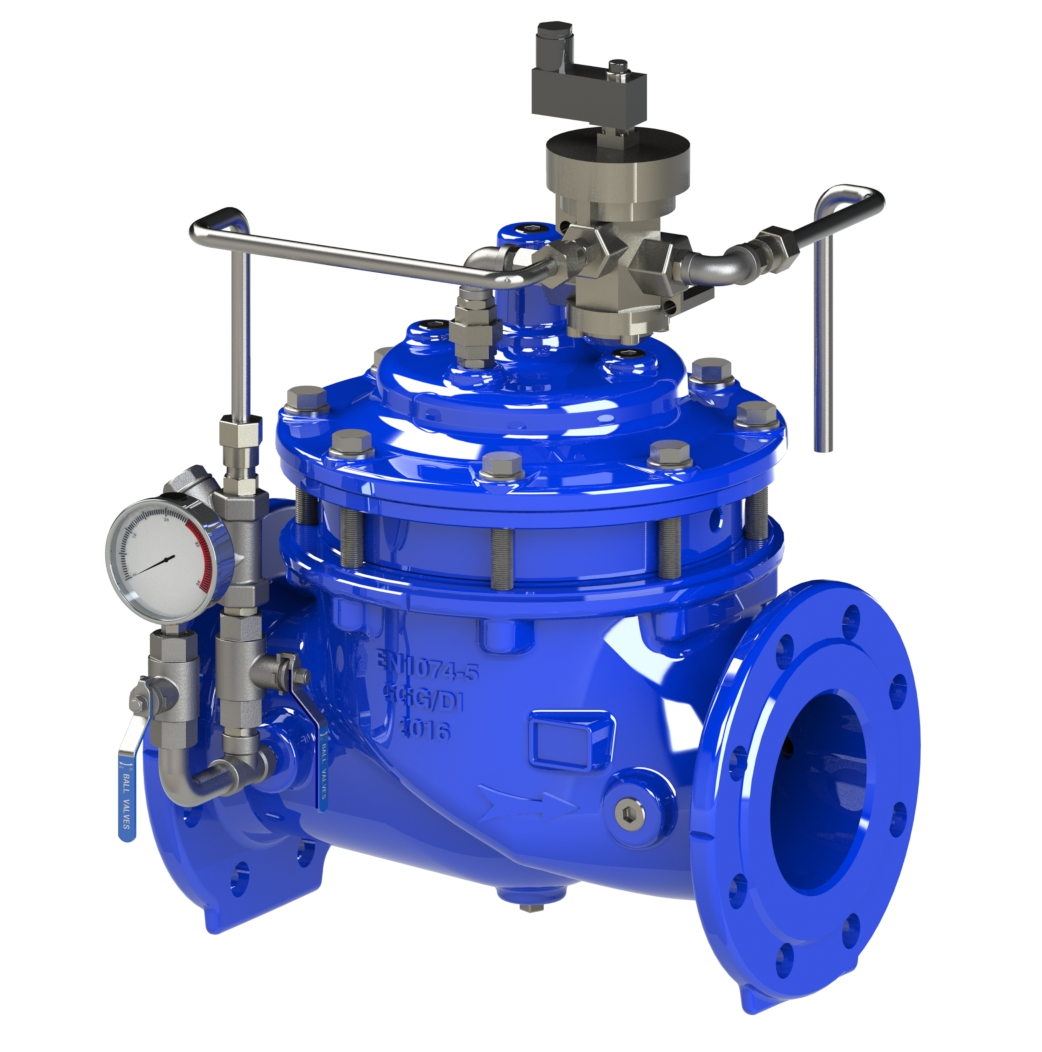

A6DV Dual Solenoid Control Valve
Double solenoid for independent open/close control circuits.
Product Description
The A6DV features two independent solenoid pilots controlling the open and close functions separately. This allows opening and closing rates to be adjusted independently via needle valves in each solenoid circuit, providing more precise control of valve stroke rate than a single solenoid design. Used where slow opening but fast closing, or vice versa, is required to match specific system hydraulics.
Specifications
Size rangeDN50–DN300
PressurePN16
MaterialDuctile iron body, stainless dual solenoid pilots
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Irrigation scheduling
- Timed reservoir fill
- SCADA-controlled isolation
- Process water supply
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN300
- Pressure
- PN16
- Connection
- Flanged PN16
