Automatic Control Valves

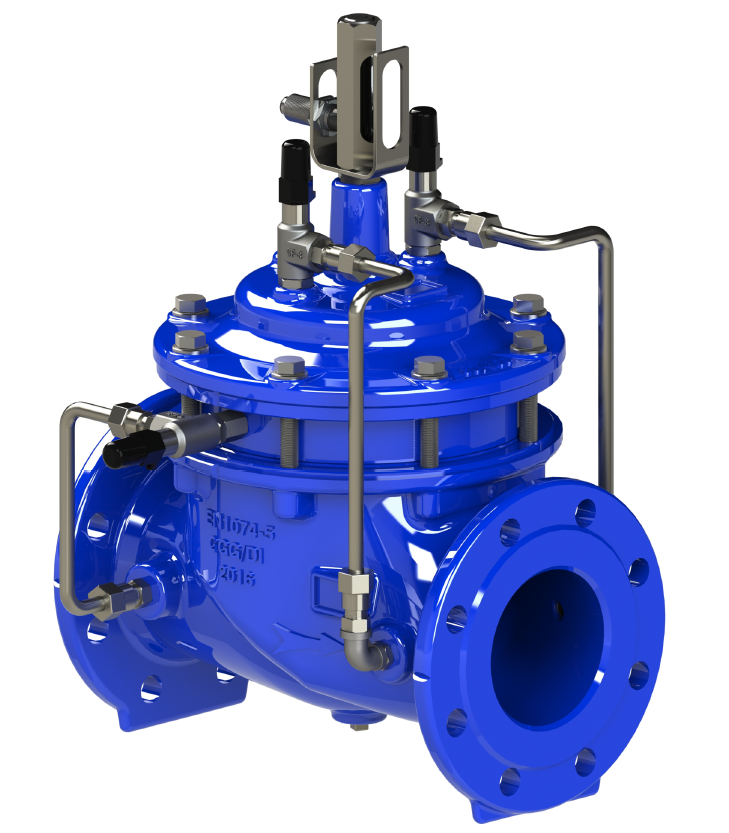

A7MD Pump Control Valve – Passive Protection
Pump control valve with passive surge protection.
Product Description
The A7MD is a pump control valve with an integrated manual override facility and delayed closing function. The manual override allows the valve to be held open or closed independently of pump operation for commissioning, testing and maintenance. The delayed closing timer extends the valve closing time on pump trip, allowing the hydraulic transient to decay before the valve seats, minimising water hammer on long rising mains.
Specifications
Size rangeDN50–DN400
PressurePN16 / PN25
MaterialDuctile iron body, rubber-lined, stainless pilots
ConnectionFlanged PN16/PN25
Approvals & Certifications
ISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Pump discharge surge protection
- Rising mains with delayed closing
- Booster pump stations
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16 / PN25
- Connection
- Flanged PN16/PN25
