Automatic Control Valves

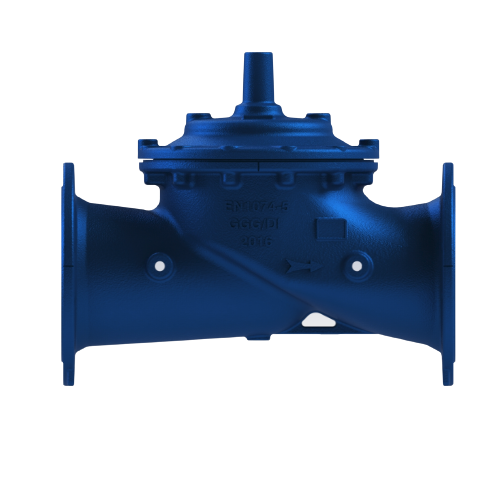

R900 Main Valve – Reduced Bore
Reduced bore main valve body for compact control valve installations.
Product Description
The R900 is a reduced bore version of the A900 automatic control valve main body. The reduced bore design allows a smaller valve to handle a given line size, reducing weight, face-to-face length and installed cost while maintaining full hydraulic control authority. Used with the standard P-series pilot range for pressure reducing, sustaining, level and flow control duties where space or weight constraints apply.
Specifications
Size rangeDN50–DN400
PressurePN16 / PN25
MaterialDuctile iron body, EPDM diaphragm, stainless pilot
ConnectionFlanged PN16/PN25
Approvals & Certifications
ISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- Surge protection
- Pump station protection
- Pipeline overpressure relief
- Water hammer mitigation
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN400
- Pressure
- PN16 / PN25
- Connection
- Flanged PN16/PN25
