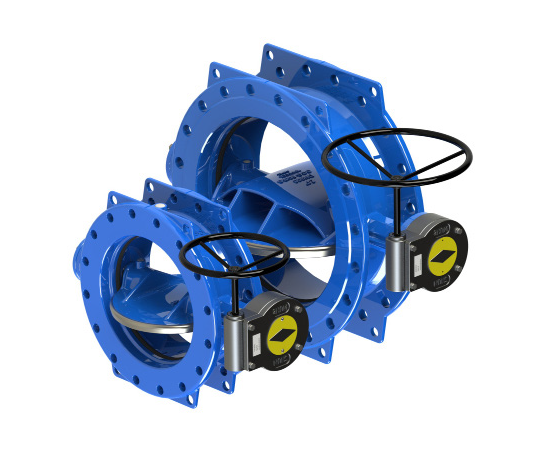

FBGD – Double Eccentric Flange Butterfly Valve
High-performance double-eccentric for demanding duties.
Product Description
The FBGD double-eccentric (high-performance) butterfly valve uses a two-offset disc geometry that lifts the disc clear of the seat immediately on opening, eliminating seat friction and wear. Suitable for frequent operation, throttling service and applications demanding tight shut-off to ANSI Class VI. Available in ductile iron or stainless body with a wide range of seat materials for media compatibility.
Specifications
Size rangeDN50–DN1200
PressurePN10 / PN16 / PN25
MaterialDuctile iron or stainless body, EPDM / NBR / PTFE seat options
ConnectionFlanged to EN 1092-2
Approvals & Certifications
ISO 9001International quality management system certificationCE MarkMeets EU safety, health and environmental requirements
Standards
EN 593API 609
Typical Applications
- Water distribution
- Industrial water
- Throttling service
- Water treatment
- Fire protection
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN1200
- Pressure
- PN10 / PN16 / PN25
- Connection
- Flanged to EN 1092-2
