Alpine Orifice Plate
Flanged orifice plate for flow measurement and differential pressure sensing.
Product Description

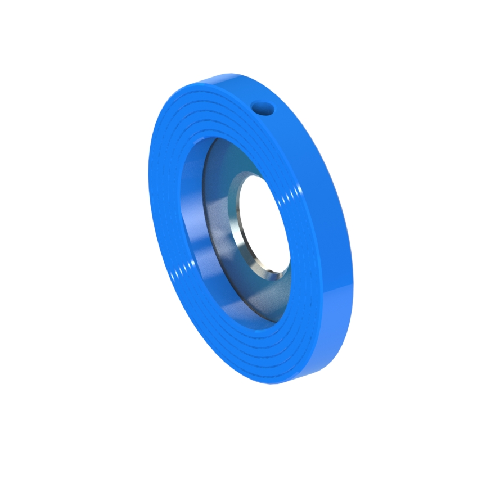

The Alpine orifice plate is a precision-bored flanged plate installed between standard flanges to create a measured differential pressure for flow calculation. Used upstream of P400 flow control pilots and P20A differential pressure pilots to provide the sensing signal. Supplied with tapping connections for pilot or transmitter connection. Available in ductile iron and stainless steel for a range of pipe sizes and flow rates.
Specifications
Size rangeDN50–DN400
PressurePN10 / PN16
MaterialDuctile iron or stainless steel
ConnectionBetween flanges to EN 1092-2
Approvals & Certifications
ISO 9001International quality management system certification
Standards
ISO 5167
Typical Applications
- Flow measurement
- Control valve pilot sensing
- Differential pressure metering
