Universal Flange Adaptor
Spec Sheet: Alpine Flange Adaptor
Comply with EN545
Coating standard:
EN30677
Test standard:
EN12266-1
Size:
DN40 to DN600,
Working pressure:
PN10/PN16
Temperature:
-10℃ to 120℃ for EPDM gasket
-10℃ to 82℃ for NBR gasket
Connection for pipes in material ductile iron, steel, PVC, AC, etc which pipe OD is in our range.
Angular deflection ±6° suitable for potable water, neutral liquids, and sewage.
WRAS approved is available upon request.

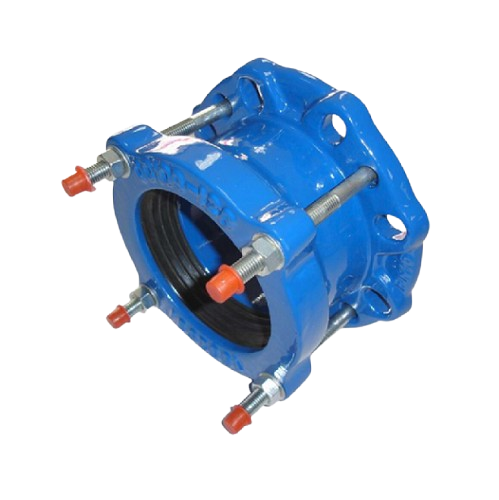

Alpine Universal Flange Adaptor (Ductile-Iron)
AFC Universal Flange Adaptor is made of ductile iron with an EPDM / NBR gasket. The EPOXY coating provided better corrosion resistance. It has a wide range to fit different kinds of pipes to fit, Eg: DI, ST, PVC, AC, CI, and GRP. There is always a suitable range to fit your pipe.
