Description

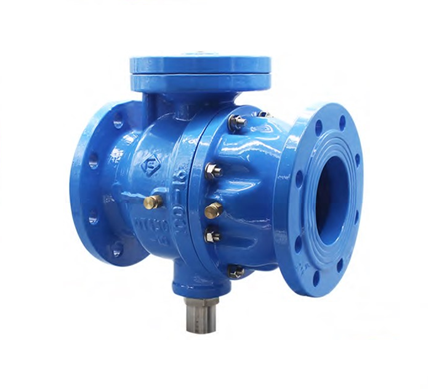

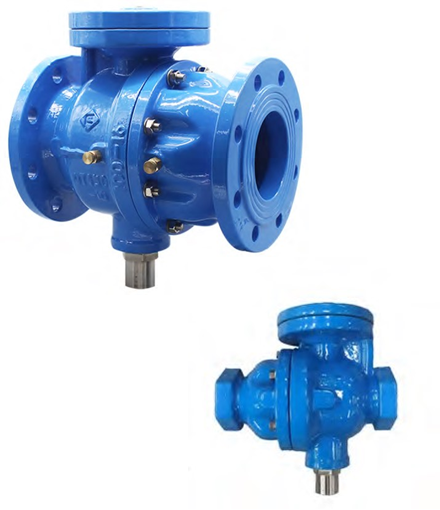

BFPX – Back Flow Preventer
Features:
- High-strength ductile iron body used for durability and less weight.
- The advanced dynamic design provides streamlined flow and assures lower head loss.
- One of the lowest head loss backflow preventers in the world
- Coated with powder epoxy both inside & outside for corrosion resistance.
- Short body and easy for installation ·Diaphragm with nylon reinforcement
- Comply with ISO 5752, EN 1092-2, and ISO 7005-2 flange dimensions.
General Application:
Prevent backflow from contaminated water.
Technical Data:
Size Range: DN50~400mm
Pressure Ratings: 1.0Mpa; 1.6Mpa
Working Temperature:-10C- 80C
Suitable Media: Clean and contaminated water
End connection: PN 10/ PN 16
Consult Factory for other applications
