Product Description

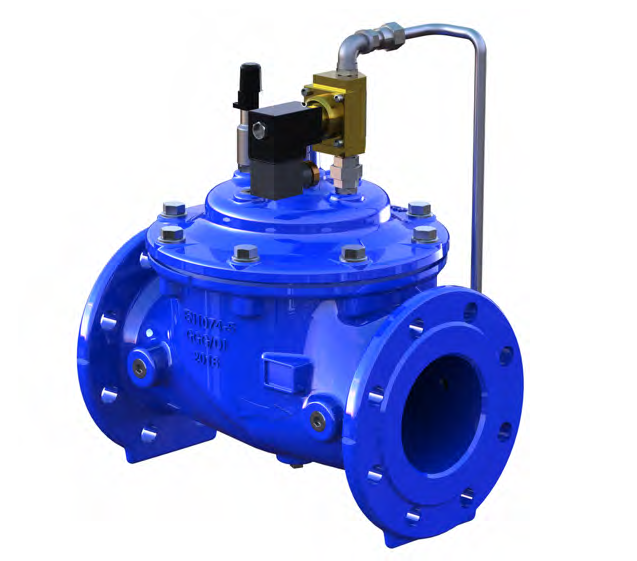

The A600 is a hydraulically operated control valve actuated by a solenoid pilot. A small solenoid valve switches the hydraulic pilot circuit to open or close the main valve on demand from a remote control system. Suitable for SCADA-controlled isolation, timed irrigation, on/off supply to reservoirs and emergency shutoff applications.
Specifications
Size rangeDN50–DN300
PressurePN16
MaterialDuctile iron body, stainless solenoid pilot
ConnectionFlanged PN16
Approvals & Certifications
WRASWater Regulations Advisory Scheme: UK approval for use in drinking water systemsISO 9001International quality management system certification
Standards
EN 1074-5
Typical Applications
- SCADA-controlled isolation
- Irrigation scheduling
- Remote reservoir fill
- Emergency shutoff
Request a Quote
Send us your size, pressure rating and quantity and we will respond with pricing and full technical documentation, typically within one working day.
Request a Quote or email info@afcvalves.euAt a glance
- Sizes
- DN50–DN300
- Pressure
- PN16
- Connection
- Flanged PN16
